ARGUS 30U/12S

The Argus S-Band Radar is perfect for vessels over 3000 gross tonnes that require an S-Band radar (3 GHz radar) as part of their carriage requirements.

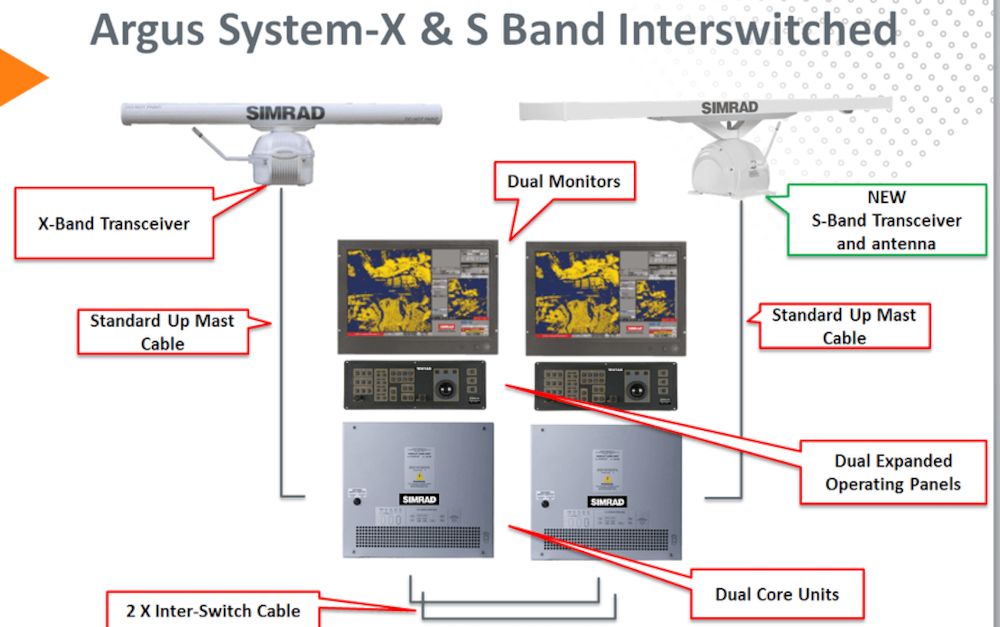

The S-Band Radar shares the majority of the modular components with the X-Band Argus Radar. The wide screen monitors, keyboard and processor boxes are the same. This makes installation simple and also reduces the amount of spares that need to be kept onboard. Installation activities are further simplified by the fact that there is a simple direct coupling between the transceiver, the rotary joint and the antenna -this also minimises the RF loss between the transceiver and antenna, so increases overall performance. Like the X-Band, the interface with the console uses a single connector ended cable that allows radar controlling and tuning remotely from the radar display without having to open the radar case.

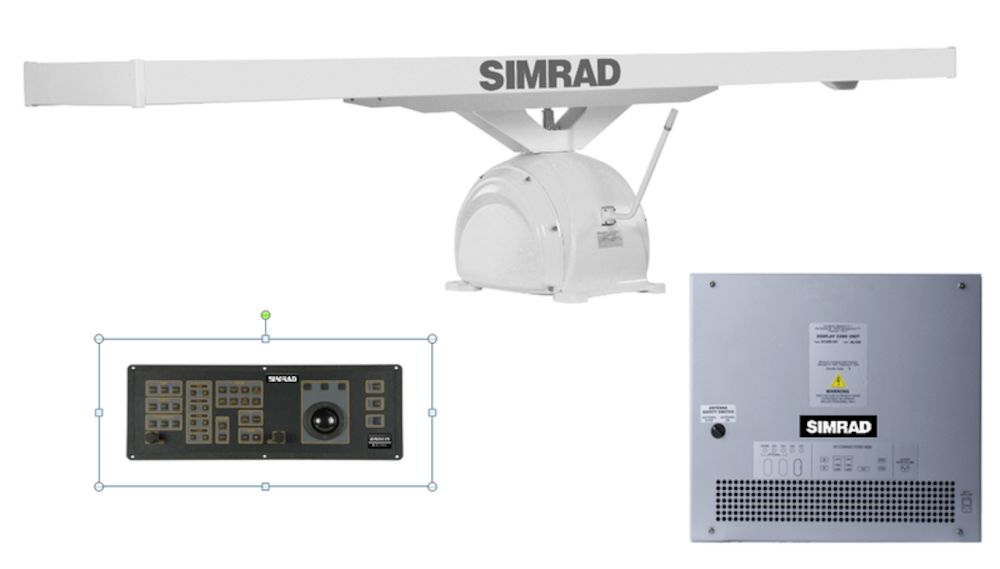

The Argus S-Band System comes with a 30kW up mast transceiver, 12-foot antenna, performance monitor, keyboard, core unit and includes 100 target ARPA plus 300 AIS targets -there are no hidden costs.
Ice Detection
For vessels operating in low temperature environments, purchasing the Ice Detection unlock key helps reduce any potential risk of serious incidents in Arctic waters. This special application supports both strategic route planning and tactical ice avoidance.
The reflectivity properties of different objects (or surfaces) will be displayed on screen as different colours. Sea water, grease ice, firstyear ice and in general low radar reflectivity areas are represented with a shade of colour from black through to green, while land, old rough ice, vessels etc. are represented by a shade of colour from green through to red.
The Ice Detection unlock key will assist the ships navigators to set a course that will follow safety routes for significant time savings and to avoid damage to the ship, ultimately increasing operational profits.
Radar Approvals
Both the Argus X-Band and S-Band radars meet and even exceed IMO regulations and Solas V minimum carriage requirements as follows:
All ships of 300 gross tonnage and upwards and passenger ships, irrespective of size, should be fitted with a 9 GHz X-band Radar.
All ships of 500 gross tonnage and upwards should have an automatic tracking aid.
All ships of 3000 gross tonnage and upwards should have a 3 GHz S-band radar or where considered appropriate by the administration a second 9 GHz X-band radar, functionally independent of those referred to in point 1.
Other Radar Approvals:
EC Marine Equipment Directive (MED)
United States Coast Guard (USGC)
China Classification Society (CCS)
FCC
ISO 9001
