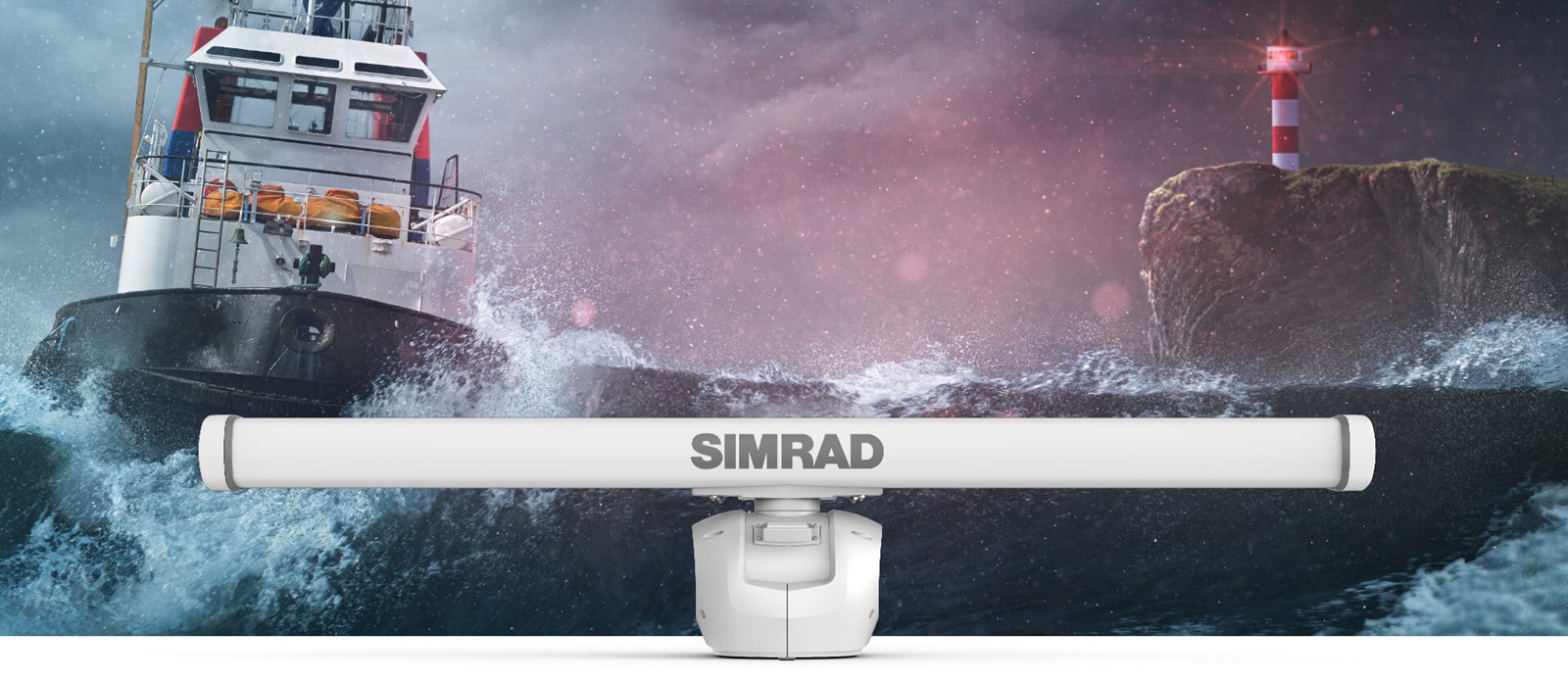

Our first IMO-approved solid-state radar, HALO® 5000 delivers enhanced situational awareness, lower cost of ownership, and total flexibility of installation.
New Sizes

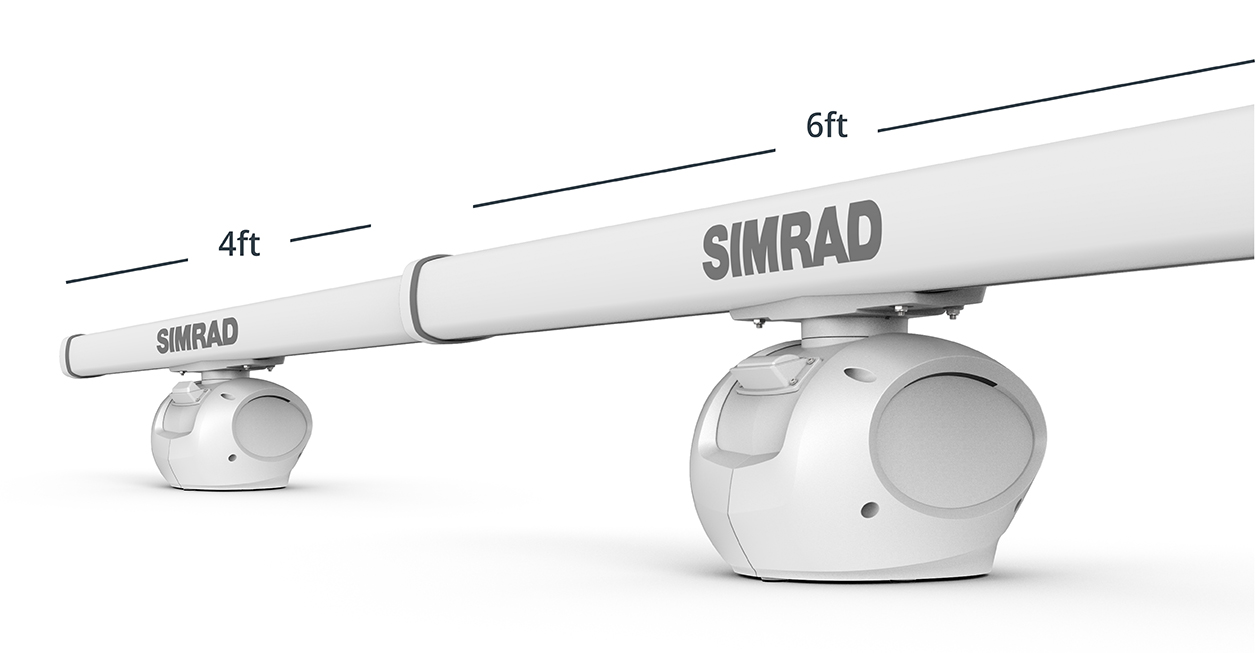

NEW 4ft and 6ft antenna options
Powerful
See up to 48NM away
Intelligent
Track up to 100 targets simultaneously
SOLAS / IMO
DGPS Navigation System - Type Approved
Enhanced Situational Awareness

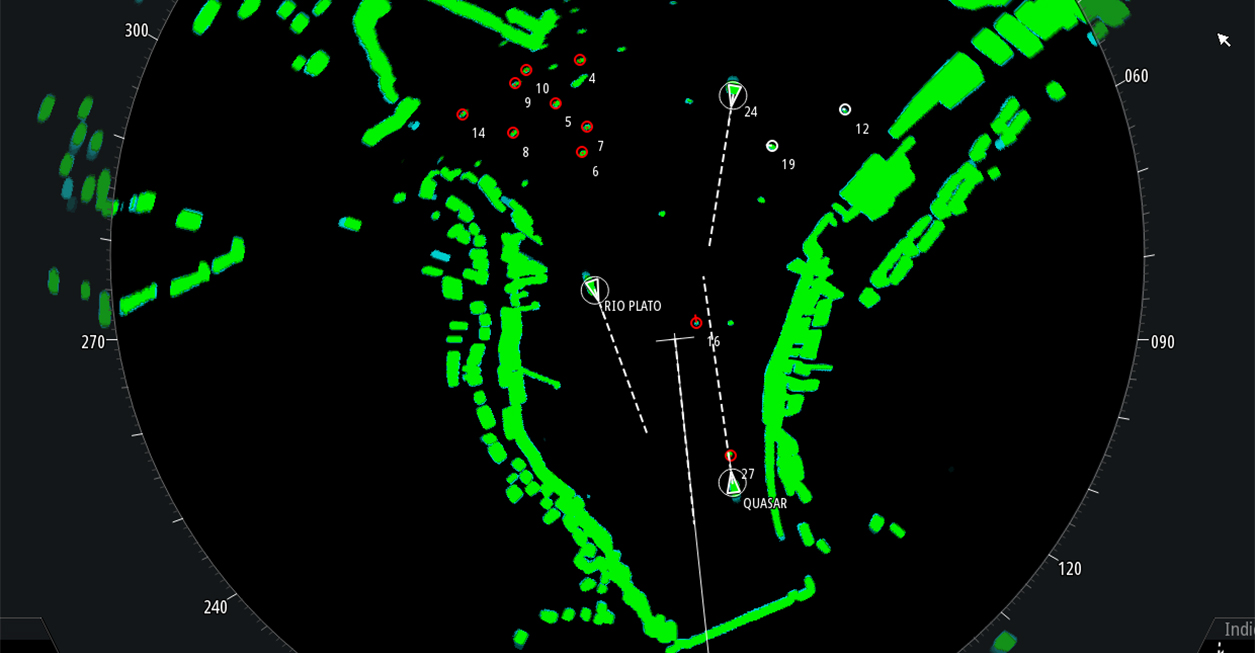

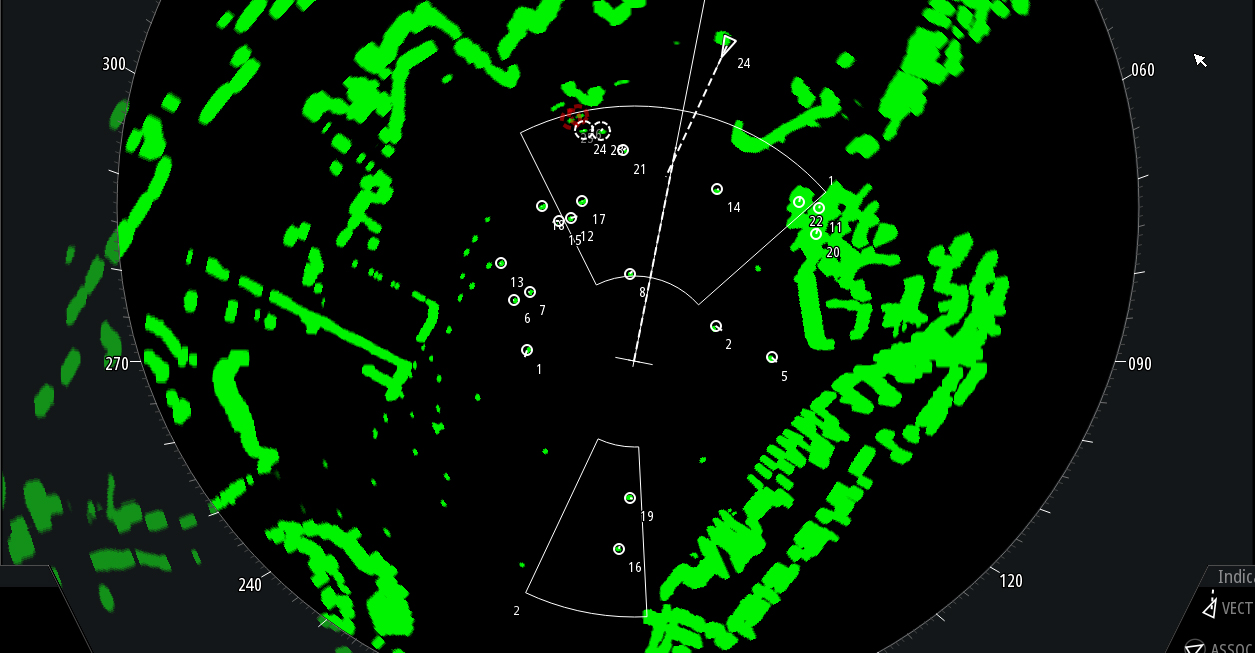

With 130W of pulse compression power, HALO® 5000 can see as far as 48NM away. Intelligent Target Tracking allows the system to monitor thousands of targets, with up to 100 on-screen at any one time.
Lower Cost of Ownership

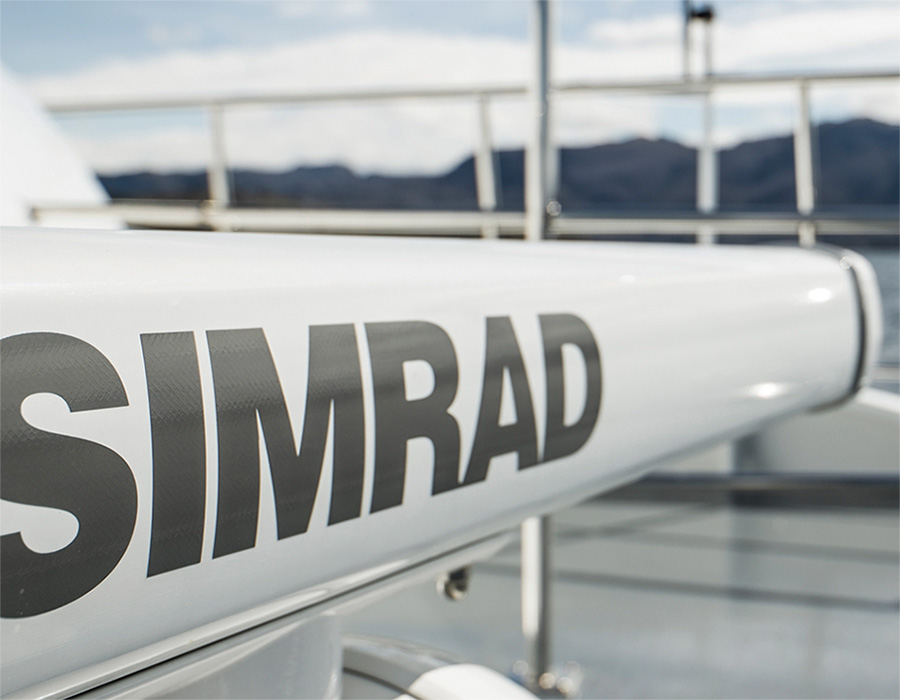

The smart new design of the HALO® radar makes it easier to fit, service, and maintain throughout its lifespan – regardless of the conditions in which you operate.
Flexible Installation
For the first time, HALO 5000 is available with both 4ft and 6ft antenna options, increasing the range of vessels it is suited to. Installation is made even easier by the simplified “plug-and-play” connectors, an antenna park hold, and the addition of an optional 65m cable.
Core Features
Get more with HALO 5000 Open Array
Seamless Integration
Slots into existing R5000 systems
Variable Speeds
Selectable 22 or 44 RPM Antenna Speeds
Flexible Power
24VDC or 110-230 VAC 50Hz Power Supply
More Robust
The high-grade gearbox withstands wind speeds up to 100 knots
Antenna Park Hold
To improve the aesthetics of your boat
Easy Installation
With optional 65m cable
Compare Radars
| HALO 5000 | HALO 2000/3000 | HALO DOMES | SRT LAN | |
| Certification | IMO | CE | CE/MED | IMO/MED |
| Technology | PuC | PuC | PuC | Magnetron |
| Transmitter frequency | X-Band | X-Band | X-Band | X- and S-Band |
| Power Ouput | 130W | 50/130W | 6/25W | 12/25/30kW |
| Performance Monitor | Advanced | - | - | Basic |
| Array sizes | 4/6ft | 3/4/6ft | 20/24” Dome | 6/9/12ft |
| Relative Wind velocity | 100Knots | 80Knots | 100Knots | 100Knots |
| Minimum detection range | 25m | 6m | 6m | 40m |
| Maximum Range Scale |
48NM | 72/96NM | 24/36/48NM | 72NM |
| SART/RACON Triggering | 3,5 NM | 1NM | None | 8NM |
| Transmission from Cold | 40s | 16-25s | 16-25s | 180s |
| Power Supply | 24VDC/110-220VAC | 12/24VDC | 12/24VDC | 110-220VAC |
| De-icer | - | - | - | Optional |

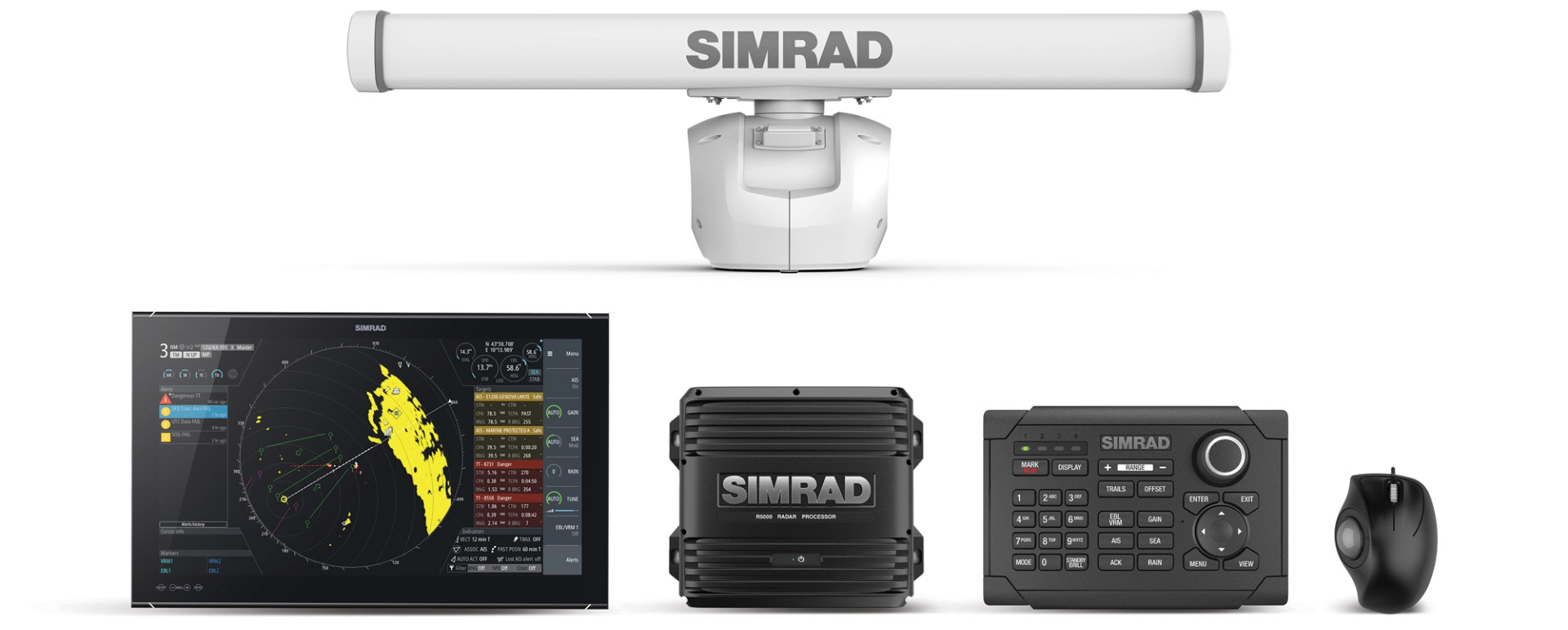

Seamless Integration
HALO’s modular design integrates seamlessly with our R5000 range, allowing the x-band sensor to slot easily into your existing system, with full IMO/SOLAS compliance. No overhaul required.
